Document Information

Project Name:

North Telecom – Scopetel

Prepared By:

North Telecom

Document Version No:

1.0

Title:

Guideline MDC- Pegaga

Document Version Date:

01st April 2023

Process Owner:

North Telecom

Document Created Date:

16th Nov 2022

Version History

Ver. No.

Ver. Date

Revised By

Approved By

Description

001

16th Nov 2022



Mr Maurice

Guideline MDC- Pegaga

002

01st April 2023



Mr Maurice

Intermittent connection checking and troubleshoot.

Adding Anydesk access on Pegaga site

003

17th April 2023





Update new credential access for MDC and Pegaga site.

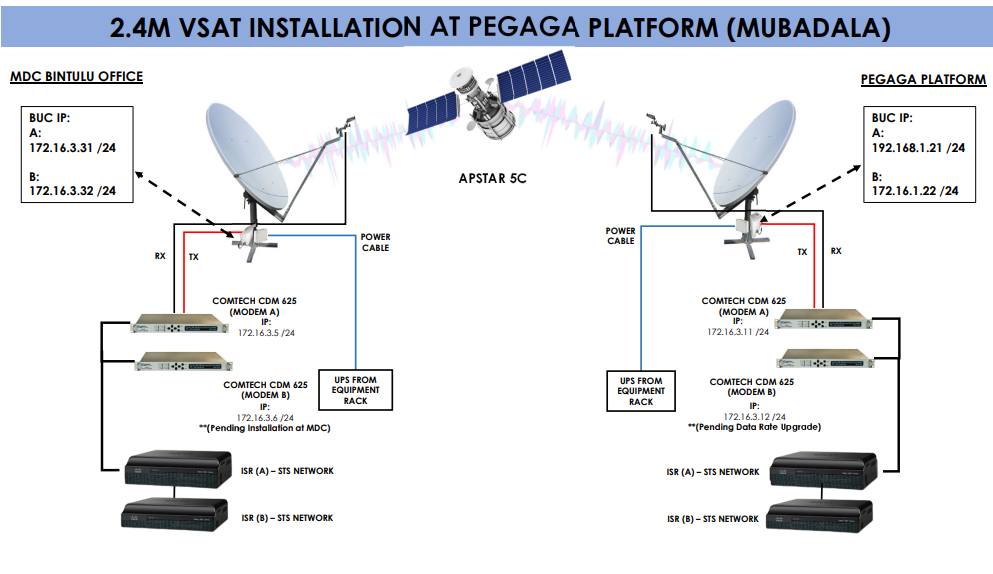

#Connection for MDC – Pegaga (Mubadala)









#This site is applied CNC carrier which mean it share same CF frequency

#Both site have redundancy modem which is A and also B , it can be access thru GUI on MINI PC installed on MDC Bintulu ( Anydesk access )



INFO: ANYDESK ACCESS ON MDC BINTULU



Mini MDC PC

Anydesk ID :198843167

password : KLSc0p3@mdc



MINI PC pegaga anydesk

766667351

password: KLSc0p3@mdc



 MDC BINTULU (Modem A)

 IP address: 172.16.3.5



Username: comtech

Password: comtech

MDC BINTULU (Modem B)

 IP address: 172.16.3.6



Username: comtech

Password: comtech






PEGAGA (Modem A)

 IP address: 172.16.3.10



Username: comtech

Password: comtech

PEGAGA (Modem B)

 IP address: 172.16.3.11



Username: comtech

Password: comtech







#If not able to access this Any desk but currently both site is ONLINE without any issue need to call MDC Bintulu PIC to check their internet connection

If doesn’t have any issue with their internet connection (ISP) mean need to check our MINI PC onsite



(PIC : Sakawi : 6011 1513 0706)




ISSUE AND STEP FOR TROUBLESHOOTING



ISSUE 1: IF customer inform there are internet connection issue from Pegaga



# Need to call PIC on Bintulu site to confirm status connection internet there

  •  If no connection internet on Bintulu site mean pegaga also will impact because the connection come from Bintulu site





ISSUE 2: If customer inform VSAT is offline



#Please check our monitoring on Decimator (can refer on Frequency plan for the detail)

  • We can check on spectrum and identify which site is down by turn off 1 by 1 to check
  • Then we can identify to troubleshoot hub or remote TX/RX chain



#Do checking with sat Ops if observe any abnormalities observe during downtime

  • Do checking if got any degradation or power drop

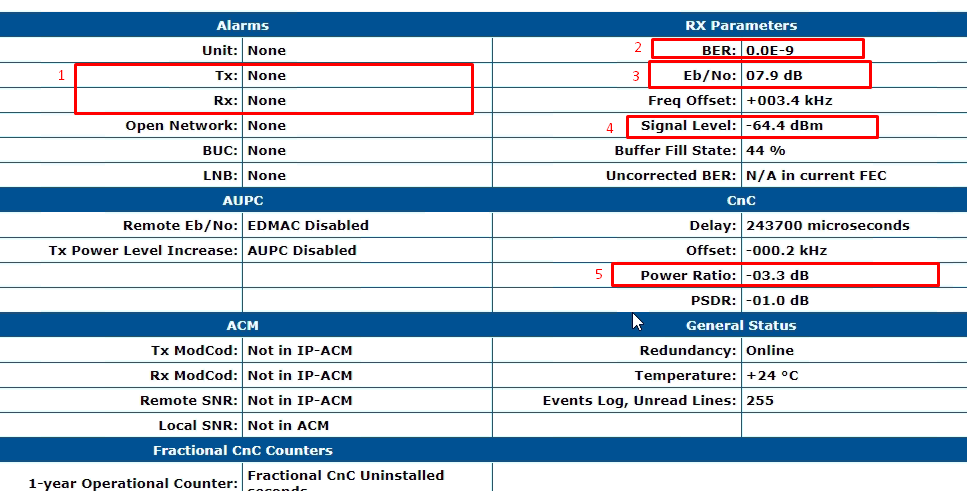

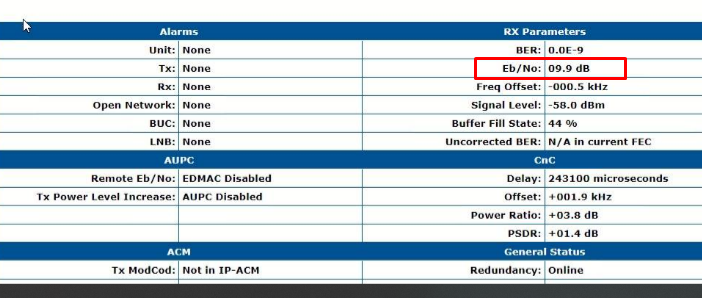

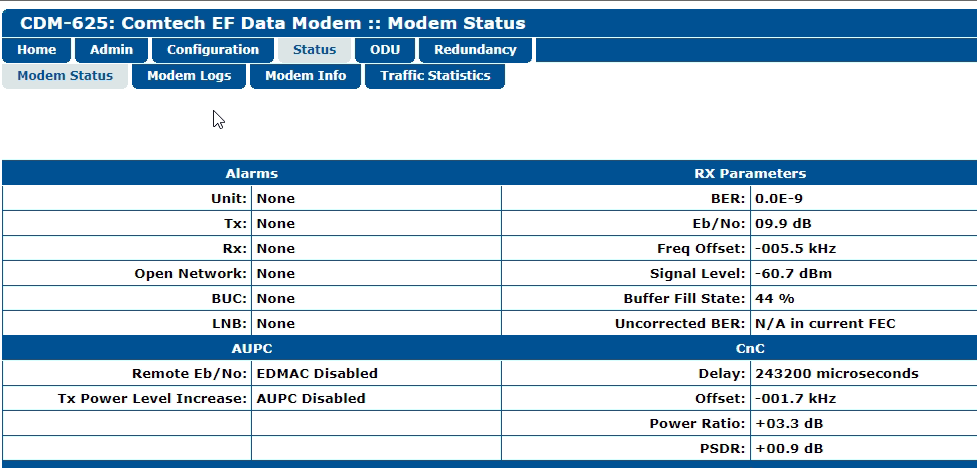

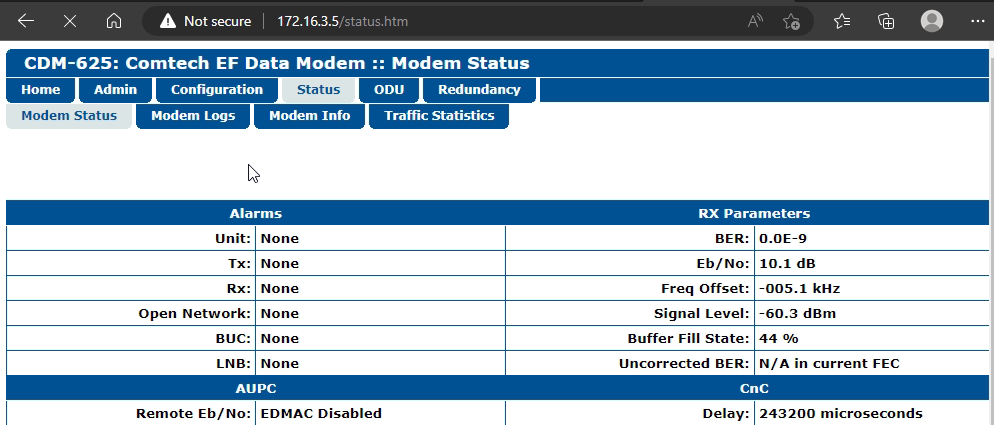

#Access Any desk on MDC Bintulu PC and do check Modem status as per below detail :-



  1. Alarm on TX /RX
  2. BER status
  3. EB/NO status
  4. Signal level
  5. PSD/Power ratio < Need to check this if you are enabling to CNC

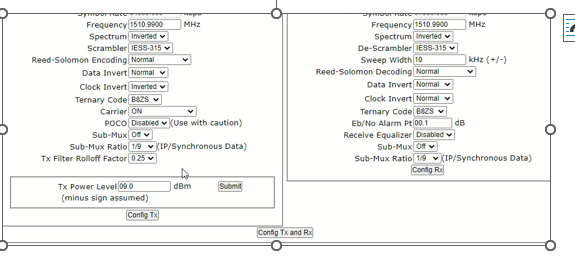

# We Can do adjustment power if require - Follow config latest Update (our main objective to have a balance in terms of power at both ends)

  • Because sometime overpower carrier can also affected the eb/no on the other carrier and cause eb/no to the lower value
  • IF we got status modem the max eb/no at lesser power it a good sign with the carrier

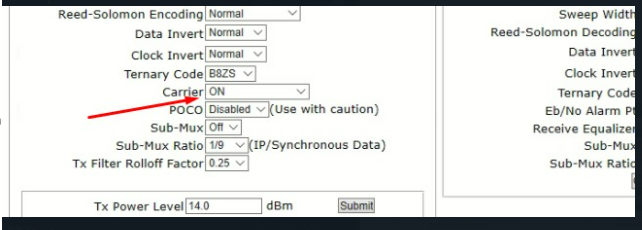

# We also can turn off One by One link to check either the slot is clean or not



Configuration >Carrier = Change to OFF

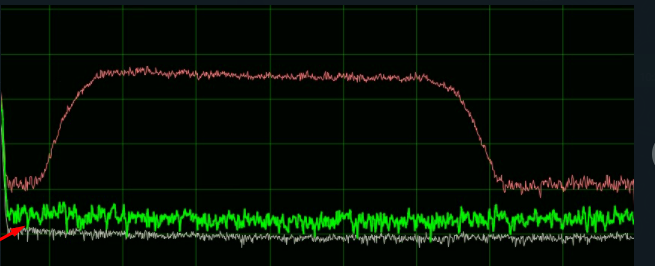

Here we know that it Clean



# If Carrier is clean and power is low then we can proceed to check the CPI

    * Get the test frequency from Sat Ops and do calculation as per below to get the L-Band before proceeding

            Calculation: Lband = RF – LO (either BUC or LNB)

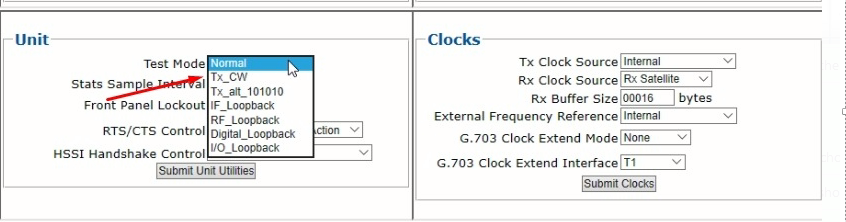

   * Please put the carrier under TX_CW to CPI

    *Please make sure we start with 20 for power

    *Check with sat Ops if require repointing or not if nothing issue, we can do 1 by 1



Utilities > Unit









ISSUE 3: Check BUC

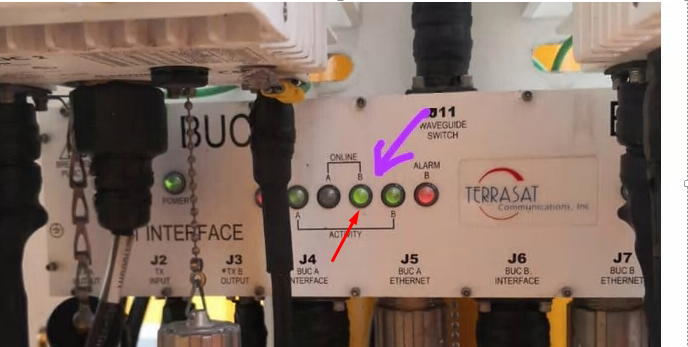

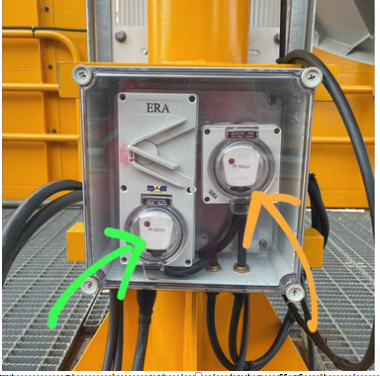

# This are junction box for the BUC power,

  1. Open the casing and plug out the power for BUC A and it will auto switch to BUC B
  2. We can do either 1 for switch over

# Here we can see BUC already switch to BUC B





ISSUE 4 : Pegaga offline MDC site okay



# Check carrier on spectrum



# May contact pegaga kuband VoIP no and ask them to check during the downtime is the modem switch to modem b

And is there any crane blockage?



0386885217 - TER - our equipment located there

0386885218 – CCR

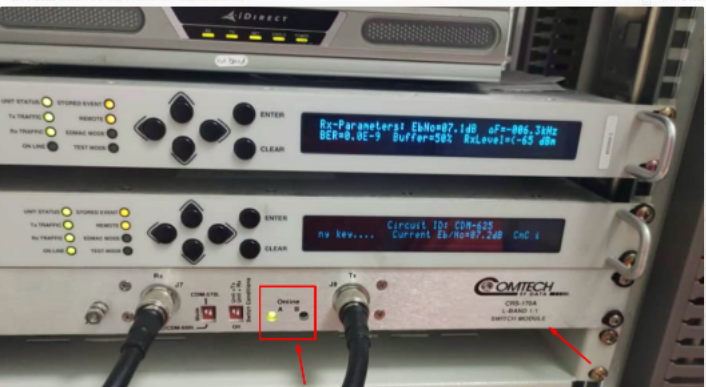

Here we can see now it on Modem A

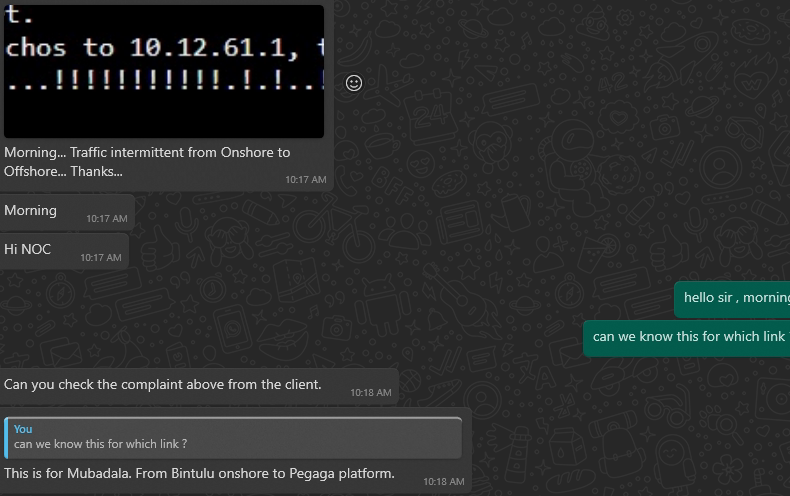

ISSUE 5  : Intermintent connection





  1. Indentify which site having issue.
  2. Check with Sat Ops if got any abnormalities /interference observe.
  3. Check Carrier either clean or not.




  1. Access Any desk to 1 of the sites and check current status of Modem and also do ping test to site affected.

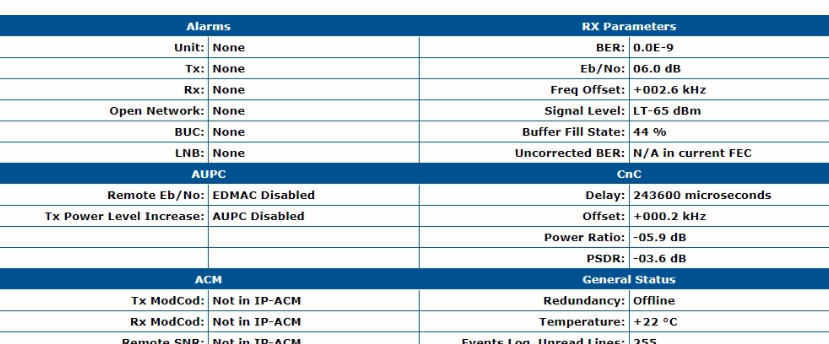

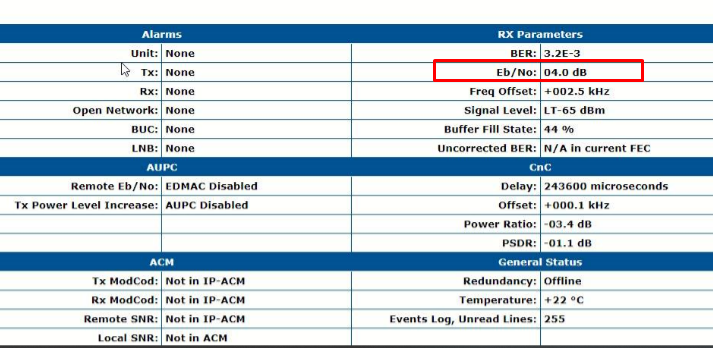

# If Ebno on 1 of site low , mean having issue need to ask how the weather /blockage status

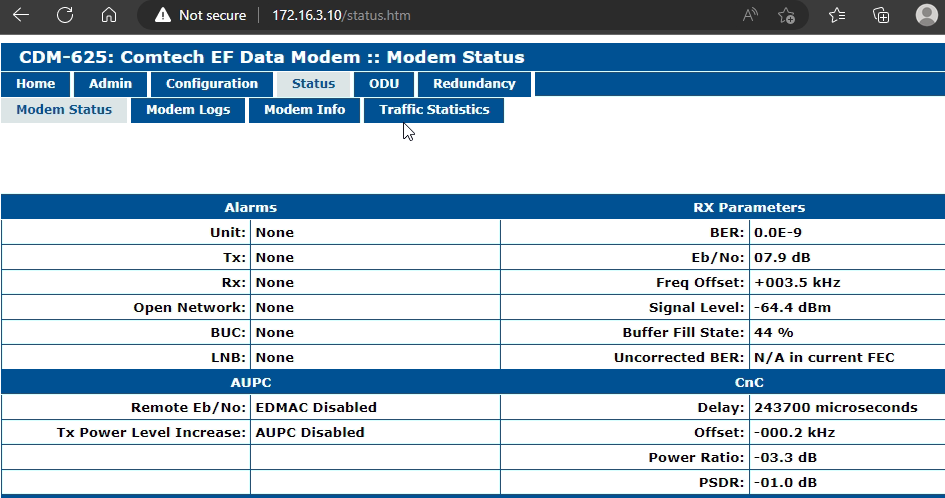

Pegaga Modem A - 172.16.3.10

Bintulu modem A - 172.16.3.5

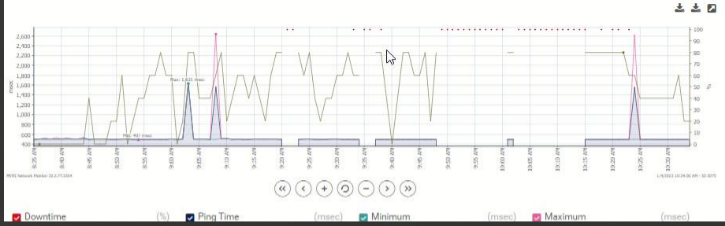

  1. Check live traffic.

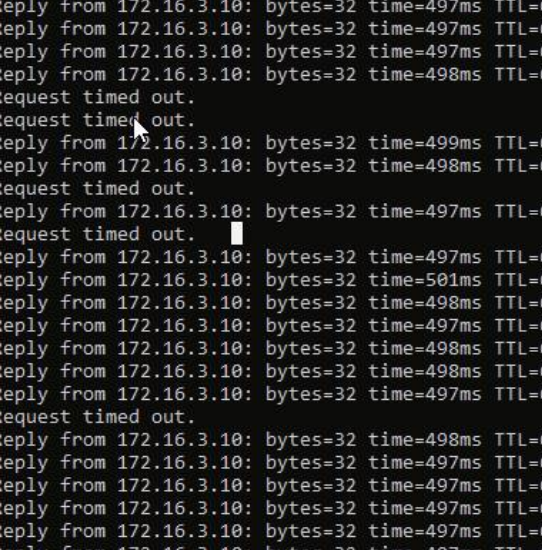

6-Do ping test to Modem Pegaga site ( site have effected)







  1. Do try increase power by 1db -2db to and continues check ebno on affected site



#Here we do increase on MDC site because pegaga is having issue





  1. Check current status of Ebno if it accepted or not , can refer our ebno detail , if all ok then we can monitor and update customer to get the actual root cause.

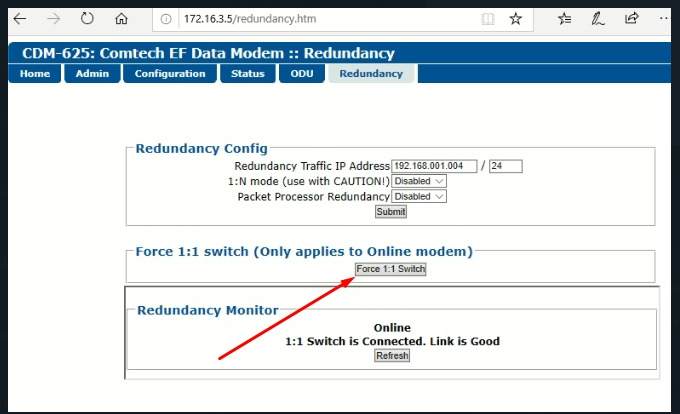

SIDE NOTE: IF want to force failover remote

*Access modem and go to redundancy > force 1:1 switch

* Once done wait around 5 minute and monitor the link





SIDE NOTE: Not all Modem able to support bigger Data rate





  • We need update the license to have a higher data rate because they only supported to 5Mbps Max
  • IF license key does not update than it will cause link not working, even though we already upgrade the Data rate



STEP: Management will get the license key/fast code > We or FE will apply on the modem > upgrade the BW

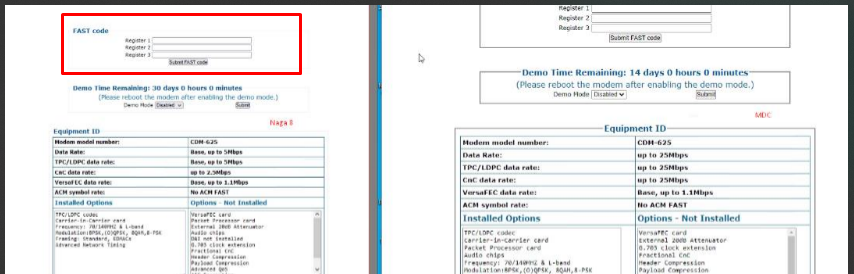

Here we can see the different where Naga 8 is not update while MDC /Pegaga already update, and the BW can go up to 25Mbps
